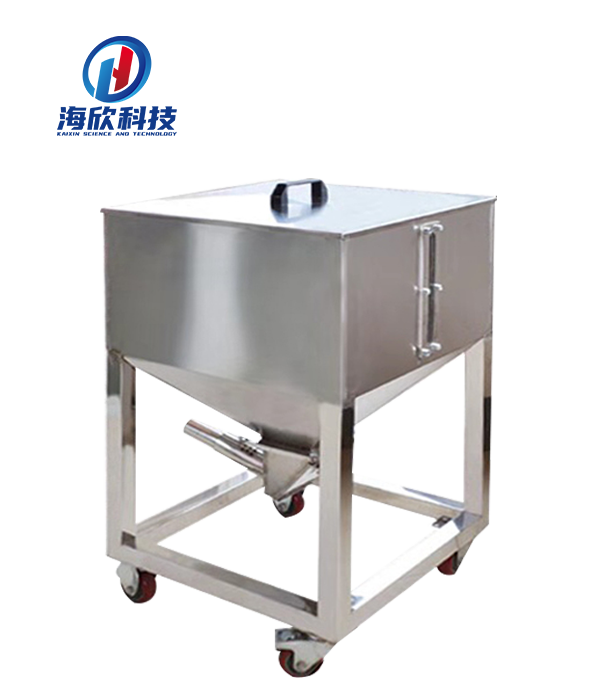

HXCL-100不锈钢移动储料箱

移动储料箱

Mobile Bin

产品特点:

Product Features

.本产品适用于塑料机械行业中注塑机上次成型前的原料储蓄用,在吸料机输送原料过程中用来装原料和粉碎料的再利用的水口料。

.料桶采用不锈钢材料制造,容易清洗、避免生锈。

.料桶底部装有吸料盒,方便吸料或卸料。

.储料箱装有滑动轮,移动方便,脚轮有固定刹车扣,可定点放置。

.This product is suitable for the raw material storage of injection molding machine in the plastic machinery industry before the last molding, and is used to load raw materials and crushing materials in the process of conveying raw materials by       suction machine.

.The barrel is made of stainless steel, easy to clean and avoid rust.

.The bottom of the barrel is equipped with a suction box to facilitate suction or discharge.

.The storage box is equipped with a sliding wheel, which is easy to move. The caster has a fixed brake buckle, which can be placed at a fixed point.

规格表 Specification Sheet

型号

容量kg

材质厚度mm

吸料盒管直径mm

外形尺寸mm

Model

Capacity

Thickness

Tube Diameter

Dimensions

HXCL-50

50

1.2

38

50*50*90

HXCL-100

100

1.2

38

60*60*100

HXCL-150

150

1.2

38

65*65*105

HXCL-200

200

1.5

38

75*75*115

HXCL-300

300

1.5

38

90*90*120
