大立式搅拌机

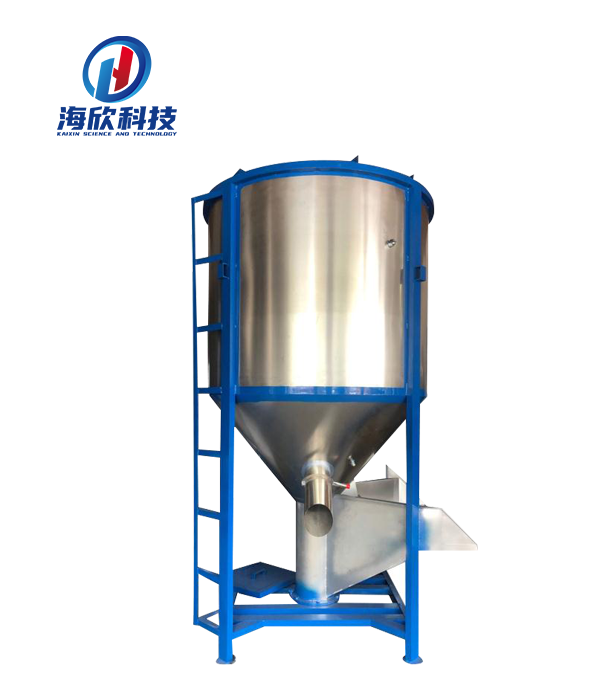

Vertical mixer
性能特点
Performance Characteristics
.螺旋循环搅拌使得原料混合更加均匀、快速。
.适用于各种塑料原料与色母的混合搅拌,新、旧料及色母混合则效果更佳。
设备与原料所接触部分的材料皆为全不锈钢制作,清洗容易,避免生锈。
.设有电控安全保护装置,确保操作安全。
.可定制加热烘干型。
The spiral circulation stirring makes the raw materials mix more evenly and quickly.
It is suitable for mixing and mixing all kinds of plastic raw materials and color masterbatch, and the mixing effect of new, old and color masterbatch is better.
All the materials in contact with raw materials are made of stainless steel, easy to clean and avoid rust.
It is equipped with electric control safety protection device to ensure safe operation.
. customized heating and drying type.
技术参数 Technical Parameter |
型号 | 功率(KW) | 容量(kg) | 转速(r/min) | 电压(V) | 外形尺寸(cm) | 净重(Kg) |
Model | Power | Capacity | Speed | Voltage | Dimensions | Net Weight |
HXQF-500 | 4 | 500 | 300 | 380 | 128*150*250 | 450 |
HXQF-1000 | 5.5 | 1000 | 300 | 380 | 155*180*290 | 630 |
HXQF-2000 | 5.5 | 2000 | 300 | 380 | 190*220*320 | 1050 |
HXQF-3000 | 7.5 | 3000 | 300 | 380 | 215*250*350 | 1250 |
加热搅拌机参数 Parameters of Heating Mixer |
型号 | 功率(KW) | 容量(kg) | 转速(r/min) | 电压(V) | 电热(KW) | 风机(KW) | 外形尺寸(cm) | 净重(Kg) |
Model | Power | Capacity | Speed | Voltage | Electrothermal | Fan | Dimensions | Net Weight |
HXQF-500 | 4 | 500 | 300 | 380 | 12 | 0.75 | 128*150*250 | 600 |
HXQF-1000 | 5.5 | 1000 | 300 | 380 | 16 | 0.75 | 155*180*290 | 720 |
HXQF-2000 | 5.5 | 2000 | 300 | 380 | 32 | 1.1 | 190*220*320 | 1150 |
HXQF-3000 | 7.5 | 3000 | 300 | 380 | 40 | 1.5 | 215*250*350 | 1350 |
