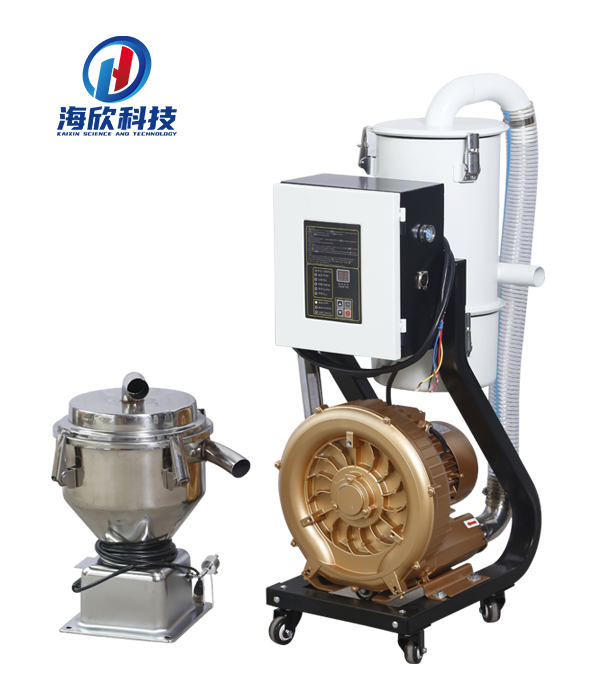

HXAL-900G全自动真空吸料机

分体式自动吸料机

Split Type Automatic Suction Machine

性能特点

Performance Characteristics

.主机与料斗分体设计,安全、简便,可满足客户远距离输料要求。

.独立滤清装置,方便清理积尘。

.微电脑控制,操作简单,控制精准,有报警指示。

.马达过载、缺料自动蜂鸣报警保护装置,可延长使用寿命。

.900G采用感应式高压风机,噪音小、寿命长。

.可选配两料比例阀,用于新料与粉碎料混合使用或粉碎料立刻回收。



The host and hopper are designed separately, which is safe and convenient, and can meet the requirements of customers for long-distance transportation.

. independent filtering device, easy to clean up dust.

.Microcomputer control, simple operation, precise control and alarm indication.

. motor overload, shortage of automatic buzzer alarm protection device, can extend the service life.

.The induction type high-pressure fan is adopted, with low noise and long service life.

.Two material proportional valve can be selected to mix the new material with the crushed material or recover the crushed material immediately.

技术参数 Technical Parameter

型号

Model

HXAL-900G



HXAL-900G



HXAL-900G



HXAL-900G



功率(KW

Power

1.5/1.5HP

2.2/3HP

3/4HP

4/5HP

输送能力(kg/h

Conveying Capacity

550

600

700

750

吸料扬程(M

Suction Head

4.5

4.5

5

6

静风压(mm/H2O)

     Staticwind Pressure

2400

2400

2400

2400

储料桶容量(L)

Bucket Capacity

7.5

7.5/12/25

7.5/12/25

7.5/12/25

送料管内径(mm)

     Internaldiameter

Φ38

Φ38

Φ38/Φ50

Φ38/Φ50

配送料管(M

Material Pipe

Φ38mm*55m*2pcs

Φ38mm*55m*2pcs

Φ50mm*5m*2pcs

Φ50mm*6m*2pcs

主机外形尺寸(CM)

Dimensions

45**38*85

45**38*85

45**38*85

45**38*85

净重(Kg)

Net Weight

75

85

90

95
