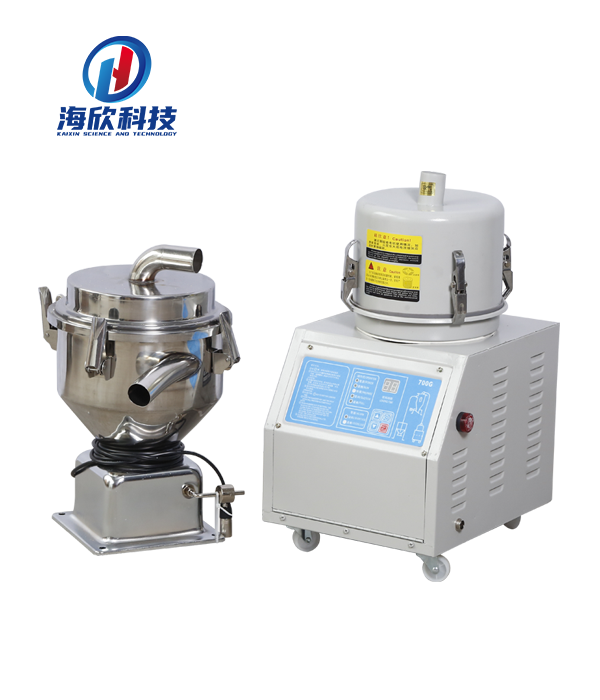

HXAL-700G真空吸料机

分体式自动吸料机

Split Type Automatic Suction Machine

性能特点

Performance Characteristics

.主机与料斗分体设计,安全、简便,可满足客户远距离输料要求。

.独立滤清装置,方便清理积尘。

.微电脑控制,操作简单,控制精准,有报警指示。

.马达过载、缺料自动蜂鸣报警保护装置,可延长使用寿命。

.700G采用碳刷式电机,噪音小、寿命长。

.可选配两料比例阀,用于新料与粉碎料混合使用或粉碎料立刻回收。

The host and hopper are designed separately, which is safe and convenient, and can meet the requirements of customers for long-distance transportation.

. independent filtering device, easy to clean up dust.

.Microcomputer control, simple operation, precise control and alarm indication.

. motor overload, shortage of automatic buzzer alarm protection device, can extend the service life.

.The induction type high-pressure fan is adopted, with low noise and long service life.

.Two material proportional valve can be selected to mix the new material with the crushed material or recover the crushed material immediately.

技术参数 Technical Parameter

型号Model

HXAL-700G

               马达规格Motor Specifications

碳刷式Brush type

输送能力(kg/hConveying Capacity

350

吸料扬程(MSuction Head

3.5

静风压(barStatic Wind Pressure

0.13

储料桶容量(LBucket Capacity

7.5

送料管内径(mmInner Diameter of Feed Pipe

Φ38

配送料管Distribution Material Management

Φ38mm*3.5m*2pcs

               外形尺寸(CMDimensions

     主机Host37*30*56

     料杯Cup28*34*43

净重(KgNet Weight

25
