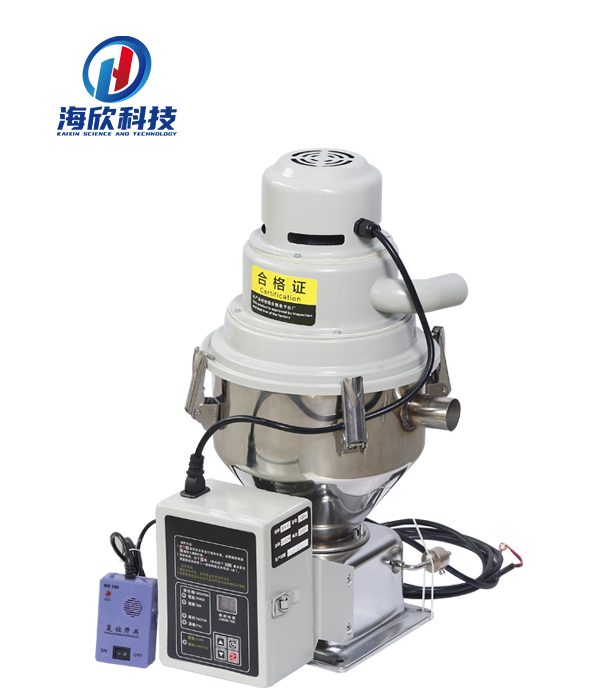

一体式自动吸料机
Integrated Automatic Suction Machine
性能特点
Performance Characteristics
.体积小、重量轻，可直接安装在干燥机上或其他原料容器上，实现自动上料工作。
.微电脑操作控制程序，马达过载、缺料自动报警保护装置。
.不锈钢储料斗，轻便耐用好清理。
.采用高速整流马达，体积小、吸力强，适用于新料输送。
.Small size, light weight, can be directly installed on the dryer or other raw material containers, to achieve automatic feeding work.
.Microcomputer operation control program, motor overload, material shortage automatic alarm protection device.
.Stainless steel storage hopper, light and durable, easy to clean.
.High Speed Rectifier motor, small volume, strong suction, suitable for new material transportation.
| 技术参数 Technical Parameter |
型号Model | HXAL-300G |
马达规格Motor Specifications | 碳刷式Brush type |
输送能力（kg/h）Conveying Capacity | 300 |
吸料扬程（M）Suction Head | 3.5 |
静风压（bar）Static Wind Pressure | 0.13 |
储料桶容量（L）Bucket capacity | 7.5 |
送料管内径（mm）Inner Diameter of Feed Pipe | Φ38 |
配送料管Distribution Material Management | Φ38mm*3.5m*1pcs |
外形尺寸（CM）Dimensions | 34*34*59 |
净重（Kg）Net Weight | 12 |
