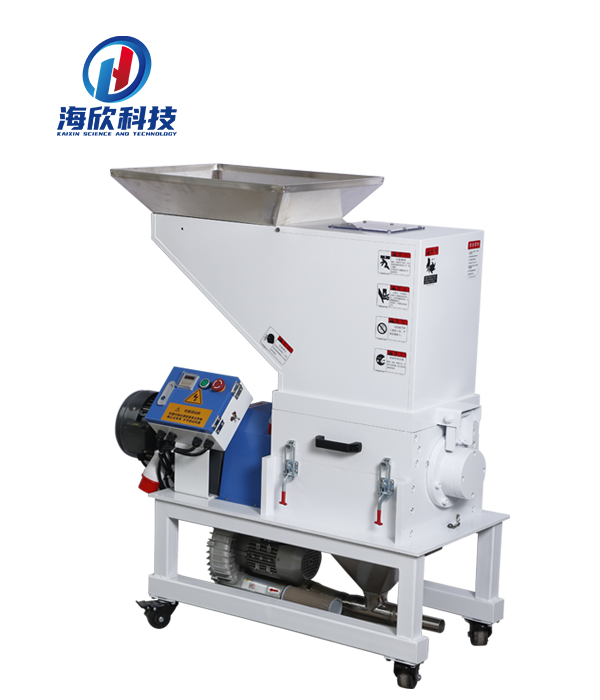

慢速静音机边粉碎机
Low speed quiet machine side grinder
性能特点
Performance characteristics
.适合粉碎PC、尼龙、ABS、PP、PC等硬质水口料。
.刀具采用优质坚固材质SKD-11,经久耐用,无需磨刀。
.料斗与箱体构造合理,方便打开,易于清理。
.无筛网设计颗粒均匀、粉末少。
.全封闭静音设计,噪音在85dD以下。
.配有相序控制器,可防止因电机反转所造成的不良后果。
.采用优质品牌减速电机,运行平稳,无噪音。
.全自动上料,无需人工,节约成本。
.It is suitable for crushing hard nozzle materials such as PC, nylon, ABS, PP and PC.
.The cutting tool is made of SKD-11, which is durable and needs no sharpening.
.The structure of hopper and box is reasonable, which is easy to open and clean.
.No screen design, uniform particles and less powder.
. fully enclosed silent design, noise below 85dd.
. equipped with phase sequence controller, it can prevent the adverse consequences caused by motor reversal.
. adopt high quality brand decelerating motor, running stably and noiseless.
.Automatic feeding, no need of labor, saving cost.
技术参数 Technical Parameter | |||||
型号 | Model | HXGO280-1HP | HXGO280-2HP | HXGO280-3HP | HXGO280-5HP |
粉碎口径mm | Crushing Chamber | 260*300 | 320*320 | 320*415 | 410*520 |
粉碎能力kg/h | Crushing Capacity | 10-20 | 40-60 | 60-80 | 80-100 |
功率KW | Power | 1.1 | 1.5 | 2.2 | 3.7 |
主轴转速 | Spindle Speed | 23 | |||
固定刀数量 | Numberfixed Knives | 6 | 6 | 8 | 8 |
旋转刀数量 | Numberrotary Knives | 回转刀2+滚刀3 | 回转刀2+滚刀3 | 回转刀3+滚刀4 | 回转刀3+滚刀4 |
刀片材质 | Blade Material | SKD-11 | SKD-11 | SKD-11 | SKD-11 |
出料颗粒mm | Discharge Particles | 5-6 | 5-6 | 7-8 | 7-8 |
电源线规格mm² | Powercordspecification | 4*1.5 | 4*1.5 | 4*1.5 | 4*2.5 |
电源线长度M | Power Cord Length | 5 | |||
噪音dB | Noise | 70-75 | |||
粉碎料回收方式 | Recycling Method | 吸料式/吹料式/料箱式Suction / blowing / bin type | |||
外形尺寸mm | Dimensions | 860*420*1200 | 1040*490*1300 | 1180*490*1300 | 1300*560*1580 |
重量kg | Weight | 270 | 310 | 350 | 500 |
