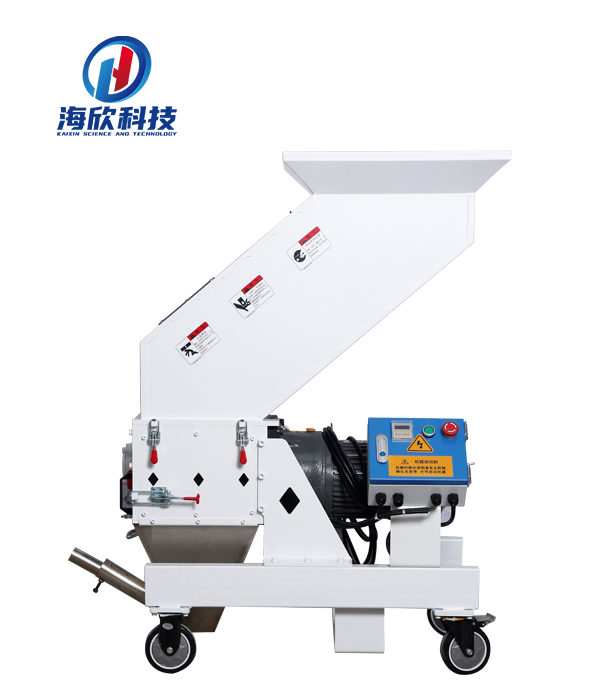

中速机边粉碎机
Medium Speed Side Mill
产品特点
Product Features
.中速粉碎机适用于水口料粉碎再利用,专门设计粉碎较软的通用塑胶。
.刀具采用优质坚固材质SKD-11,经久耐用。
.料斗与箱体构造合理,方便打开,易于清理。
.筛网设计颗粒均匀、粉末少。
.全封闭静音设计,噪音在85dD以下。
.配有相序控制器,可防止因电机反转所造成的不良后果。
.采用优质品牌减速电机,运行平稳,无噪音。
.全自动上料,无需人工,节约成本。
.Medium speed crusher is suitable for crushing and reusing of nozzle material, specially designed to crush soft general plastic.
.The cutting tool is made of SKD-11, which is durable.
.The structure of hopper and box is reasonable, which is easy to open and clean.
.The screen is designed with uniform particles and less powder.
. fully enclosed silent design, noise below 85dd.
. equipped with phase sequence controller, it can prevent the adverse consequences caused by motor reversal.
. adopt high quality brand decelerating motor, running stably and noiseless.
.Automatic feeding, no need of labor, saving cost.
技术参数 Technical Parameter | ||||
型号 | Model | HXGM-8 | HXGM-10 | HXGM-15 |
粉碎口径mm | Crushing Chamber | 240*270 | 275*290 | 280*430 |
粉碎能力kg/h | Crushing Capacity | 35-70 | 75-150 | 100-200 |
功率KW | Power | 2.2 | 2.2/3.7 | 3.7 |
主轴转速 | Spindle Speed | 143转/分 | 143转/分 | 143转/分 |
刀具结构 | Tool Structure | 爪刀+筛网Claw knife + screen | ||
回转刀数量 | Numberrotary Knives | 8 | 10 | 15 |
刀片材质 | Blade Material | SKD-11 | ||
筛网孔径mm | Mesh Size | 6(可定制)Customizable | ||
电源线规格mm² | Powercordspecification | 4*1.5 | ||
电源线长度M | Power Cord Length | 5 | ||
外形尺寸mm | Dimensions | 750*1250*470 | 940*430*1240 | 1100*850*1300 |
重量kg | Weight | 185 | 240 | 270 |
