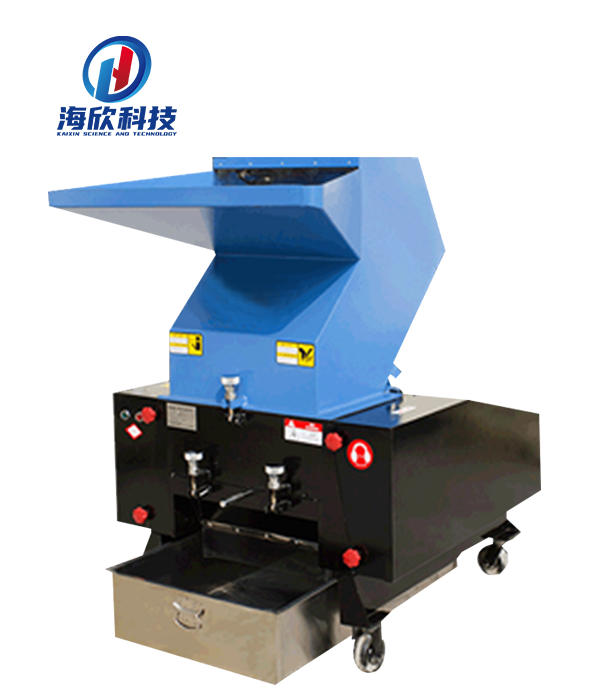

HXGP-500强力粉碎机

强力粉碎机
Power crusher

产品特点
Product features

.适合粉碎各种大块材质的不良品,塑料胶口料,可集中粉碎回收。

.全机采用高硬度钢模板,坚固耐用。

.转轴采用特殊材料加工制成,不易变形。

.刀具采用进口合金钢精制而成。刀片可独立调整,可多次更磨反复使用。

.入料斗、刀具、筛网都可打开、拆装,易清理。

.电机装有过载保护和安全开关,确保安全生产。

.筛网采用圆锥孔工艺制作,大大提高干燥效率。

.It is suitable for crushing all kinds of large pieces of defective products and plastic mouth materials, and can be crushed and recycled in a centralized way.

.The whole machine adopts high hardness steel formwork, which is solid and durable.

.The shaft is made of special material, which is not easy to deform.

.The cutting tool is made of imported alloy steel. The blade can be adjusted independently and used repeatedly.

.The feeding hopper, cutter and screen can be opened, disassembled and easily cleaned.

.The motor is equipped with overload protection and safety switch to ensure safe production.

.The screen is made by conical hole technology, which greatly improves the drying efficiency.

技术参数 Technical Parameter

型号

粉碎口径mm

粉碎能力kg/h

功率KW

定刀数

动刀数

机器尺寸mm

重量kg

Model

Crushing Chamber

Crushing Capacity

Power

Number

Number

Size

Weight

HXGP-300

230*300

200-250

5.5

2

9

1030*750*1200

380

HXGP-400

245*400

300-450

7.5

2

12

1100*860*1300

550

HXGP-500

300*500

400-800

11

2

15

1300*1020*1520

700

HXGP-600

335*600

450-900

15

4

18

1450*1150*1700

950

HXGP-800

500*800

650-1200

22-37

4

24

1850*1410*2130

1700
